Logging in to QSP Life
QSP Life is run through a standard Internet Browser. This platform has been developed and tested using the Google Chrome browser and that is the browser we recommend. However, you should be able to run from any modern browser (Chrome/Edge/Firefox/Safari/etc.). If you encounter any unexpected display issues using a non-Chrome browser, it is recommended you try using Chrome to check if this resolves the issue.
You may run your browser on any hardware that supports a browser. This includes laptops, tablets, and even phones (although the limited size of a phone screen will render the experience less than ideal). Because all calculations are run on the cloud, the CPU and memory requirements for your local hardware are nominal. If your hardware is typically capable of running a browser without issue, it will work with our software.
To access the platform, visit the following URL:
https://(YOUR_ORGANIZATION).qsimulate.com
where (YOUR_ORGANIZATION) is replaced with the shorthand name that QSimulate will have provided to you
2.1 Account creation & logging in

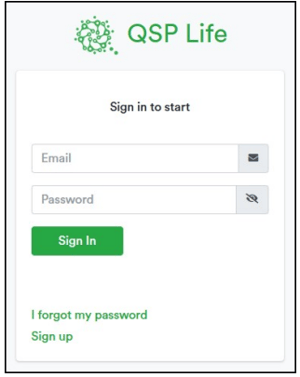

When you visit the landing page described above, you will be presented with a dialog for logging in:

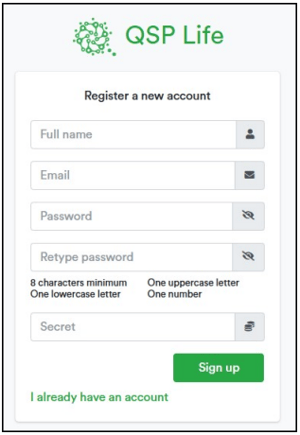

If this is your first usage of the platform, click on Sign up to create your account. You will be prompted to enter your information (full name, e-mail, password) as well as a token:
The token is a unique key code that has been provided to the primary contact individual at your organization. Only the person(s) with the token can create new accounts. Either the contact person will share the token with you, or else that person will create an account for you.
Note: the token will only allow the use of e-mail addresses from the associated institution. For example, if the token was provided to the institution whose domain is “AAA.com”, then accounts can only be set up that correspond to e-mail addresses of the form name@AAA.com. This token is only required the first time a new account (for a new e-mail) is created.
Tokens are only provided after an agreement is in place between your institution and QSimulate.
Once your account has been created, you can log in using the credentials you specified for the account when you created it: e-mail and password.
2.2 Forgotten password
If you have forgotten your password, you can recover it by clicking on “I forgot my password,” which will ask for your name and the e-mail address you specified when you set up the account. Your recovery credentials will be sent to that e-mail.
2.3 Troubleshooting
If, after reading this section, you continue to encounter problems creating your account or logging in, you can contact us at the QSimulate support portal:
https://qsimulate-ticket.atlassian.net/servicedesk/customer/portals
QSP Life User Interface
3.1 The Task Table

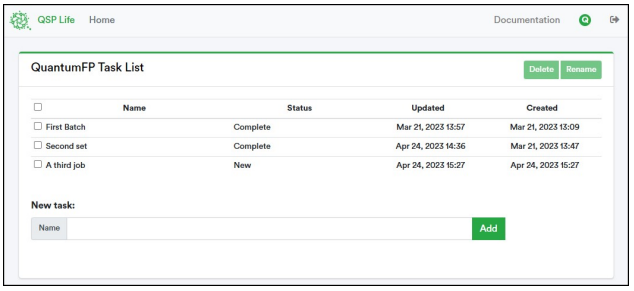

Once you log in, QSP Life will present you with the following interface. This is the Task Table, which lists all of the calculations you have set up through the platform. Each time you want to set up a new calculation, you start by adding a new Task (for which you supply a name), and that Task will appear in this table.
If this is your first time using the platform, this list will be blank, as shown below:
Once you have created one or more Tasks (calculations), they will be saved and will populate the table when you return to the Task Table page, which you do at any time by clicking on the word “Home” in the upper left part of the page:
3.1.1 Task Table Contents
Within the table, for each Task you have set up, the following information is provided:
- Name: The name you assigned to the Task when you created it. You can rename a task, if desired, using the “Rename” button to the top right.
- Status: The status of the Task.
- Staged: The Fingerprinting simulation options and input are still in the process of being defined, and the Task has not yet been submitted
- Running: The Fingerprinting Task is currently running
- Stopped: The Fingerprinting Task was stopped by the user after it had been started, and before completion. Stopping and restarting of jobs is supported by buttons accessible through the page for the Task
- Complete: The Fingerprinting Task has been run and completed successfully.
- Failed: The Fingerprinting Task was run, but failed for some reason. Details on the reason for the failure can be found on the page for the Task.
- Updated: The time and date when the Task was last updated
- Created: The time and date when the Task was first created
All columns of the Task table can be sorted by clicking on the column header. Clicking on the Name and Status headers once will sort in ascending alphabetic order, and clicking on them again will reverse the sort. Clicking on the Updated and Created headers once will sort in the order Newest → Oldest. Clicking on them again will reverse the order of the sort.
3.1.2 Choosing a Task
Clicking on any of the Tasks in the list will take you to a page where you can either set up and run the job (if the Status
is Staged or Stopped) or else look at results and/or error issues (if the status is Running/Complete/Failed). The contents of the Task page itself will be described in the chapter on Fingerprints.
3.1.3 Task Renaming
In front of each Task name is a check box. If you check the box in front of a single name, the Rename button at the top right of the table will become active, and allows you to rename that Task. Note that two tasks cannot have the exact same name.
3.1.4 Task Deleting
You can Delete one or more Tasks by selecting the check box(es) in front of the Tasks, and then selecting the Delete button at the upper right. The panel supports the multi-selection of boxes for the Delete operation. If you click one box, then Shift+Click a second box, all boxes between the first box and the second box will be simultaneously selected. When you click the Delete button, you will be presented with a confirmatory dialog to ensure you want to perform the Delete. Note that once Tasks are deleted, they cannot be recovered.
3.1.5 Creating a New Task
Below the Task Table, you will find the dialog that allows you to create a new Task. To add a new Task (calculation), type the name you want to give that task into the text entry region next to “Name” and then click the Add button. Task names must be unique. If you attempt to add a Task with the exact same name as a task that already exists, you will get the error “Task name already used.” When you add a new Task, the setup page for that Task will open immediately.
3.2 Navigation And Menu Buttons
Above the Task Table, you will find the Navigation display at the upper left (next to the QSP Life logo). And you will
find the Menu button at the upper-right.
3.2.1 Navigation
Navigation is displayed to the upper left of the panel, and starts with the name “Home.” If you are within a Task page, then the navigation will show as
Home > Task_Name
Clicking on the word Home from any page will take you back to the Task List view (the same view as when you logged in).
3.2.2 Documentation
Clicking on the Documentation button will bring you to an online version of the documentation for this platform.
3.2.3 Settings and Expert Mode

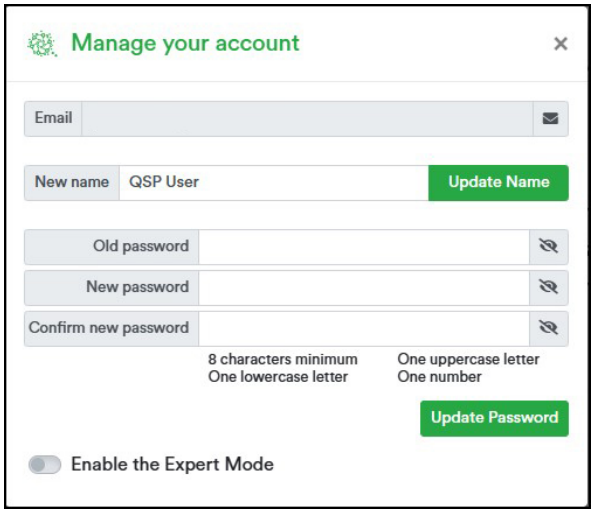

The settings button (shown above) opens a dialog where you can change various settings for your account: Display user name, password, and turn on Expert Mode:
- Email: In the settings menu, you can see the email address associated with your account, but this email address cannot be changed.
- New Name: You can change the display name associated with your account. This name does not affect your login.
- Password: You can change your password through this dialog. Enter your old password and new password. You must adhere to the password rules: 8-or-more characters, both lower and uppercase letters required, and your password must also include at least one number.
- Expert Mode: A key feature in this settings panel is the ability to enable “Expert Mode.” Expert Mode, which is turned off by default, will display a variety of additional options in the FEP setup panel. These options are not required for default behavior, but may be useful to advanced users. These options include the ability to modify the timestep, the amount of equilibration sampling, the extent of the periodic water box, the timestep, and the method used to derive classical force field charges. Note that if you turn on Expert Mode, it will revert to “off” once you log out of your current session.
3.2.4 Logout
If you click the logout button, you will be logged out of the platform and returned to the Login screen. (Note: A user will also be automatically logged out after a certain period of inactivity.)
Molecular Fingerprints
4.1 Overview
The molecular Fingerprints module allows the user to easily perform a complex workflow for a large number of molecules of interest. This workflow makes it very easy to generate 3-dimension molecular structures from input SMILES strings, to perform conformational sampling for those 3D structures, to prune the resulting structures on the basis of eenergies and similarity, and to ultimately calculate quantum mechanical properties and 3D bitstring fingerprints for the resulting set of conformers. All of this is performed in an automated fashion that requires only the input SMILES data and a few button selections by the user.
A large number of quantum mechanical properties are determined for each molecule, providing a similar variety of properties to those presented in the well-known “QM9” and “QMUGS” database work.

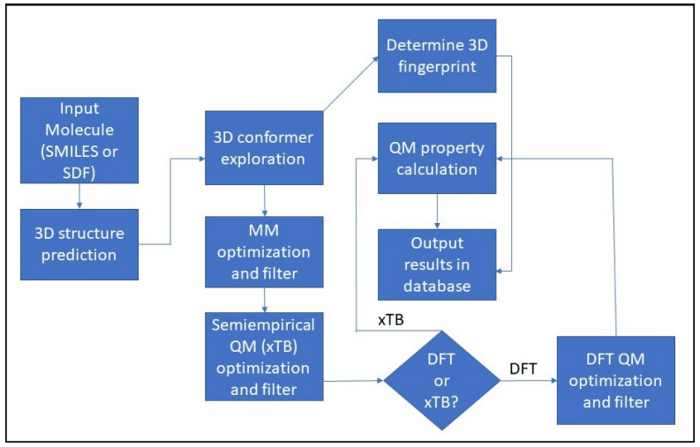

The workflow that is performed is shown, at a high level, in the following figure.
The calculations that are performed are distributed across many processors on the cloud, enabling efficient performance, even for large numbers of input molecules. The platform can support up to a very large number of input SMILES strings in a single calculation. A major advantage of the QSimulate platform is that it has been developed to take advantage of the relatively less expensive spot instance pricing through AWS in a manner that is seamless to the user.
This module is focused on high throughput analysis, and the expectation is that the user will download the resulting database at the end of the calculation. As a result, interactive tools to analyze the results in this panel are limited.
4.2 The Fingerprinting Task List

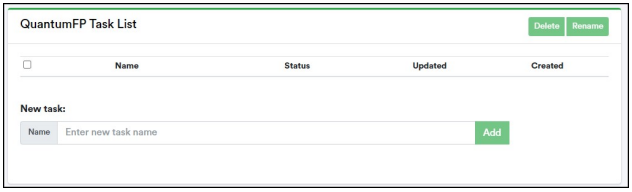

When you enter the platform, you will be presented with the Fingerprinting Task List, a list of calculations (Tasks) that you have previously set up and/or run, as well as a dialog to create a new Task. Clicking on a Task will bring you to the setup/results page for that Task.
For more details on the FEP Task List, see the chapter “QSP Life User Interface.”
4.3 Workflow details
4.3.1 Overview
The workflow consists of two general steps: 3D conformer generation, and then energetic and similarity filtering. The filtering process can be seen as a funnel, where the top of the funnel has a larger pool of conformers that are progressively refined during each stage, to eventually lead to a smaller pool distinct, low-enegy structures. The funnel, which reduces the number of conformers being evaluated at each subsequent step, is designed optimize throughput reduce the number of conformers that are evaluated using the most computationally expensive approach to be applied (either semiempirical xTB or DFT quantum mechanics, depending on the option the user has chosen).
4.3.2 3D Conformer Generation
From the input SMILES string, a bounds-matrix based on the input topology and atom types is calculated, and this is used as input to a distance geometry (DG) calculation. If, optionally, the user uploads a SDF file with structural information, then the bounds matrix is obtained from that input structure.
The bounds matrix, along with a random number seed, is used to create a specific distance matrix consistent with the bounds. This specific distance matrix is then used by DG to produce a starting structure. A series of N random number seeds are used to create N different specific distance matrices, which lead to N different DG-generated starting structures. The N structure pool is pruned to remove structures that are very similar to one-another. Similarity among structures is evaluated using a root-mean-squared (RMS) coordinate metric.
4.3.3 Molecular Mechanics (MM) Optimization and Filtering
Starting with the conformer set from the first step (3D Conformer Generation) conformers are then subjected to a geometry optimization using the Universal Force Field (UFF).
Conformers with a MM energy larger than a cutoff value from the minimum identified are filtered out in this stage, as are structures that are too similar to another (lower energy) structure. The values used to filter the energy cutoff and the RMS similarity are automatically assigned by the program.
4.3.4 Semi-Empirical Quantum Mechanical (QM) Optimization and Filtering
The surviving conformers from the MM stage are then subjected to geometry optimization using the state-of-the-art semi-empirical QM method GFN-xTB. As with the MM step, high-energy and similar conformers are discarded from the pool, and the values that control these filters are defined by the program. Depending on the option chosen by the user, the set of conformers that survive the semi-empirical filtering are either used directly for QM property fingerprinting,
or else are subjected to further filtering at the Density Function Theory (DFT) level.
4.3.5 Density Functional Theory (DFT) Optimization and Filtering
If the user has selected an option where QM properties will be evaluated at the DFT level, then the conformers that survive the semi-empirical filtering are optimized at the DFT QM level. As with the MM and semi-empirical steps, filtering is applied to retain only low energy distinct conformers. The DFT approach that is applied is, by default, (wB97x-D; def2-SVP). This is a level of DFT theory that optimizes throughput and reliability of the results.
4.3.6 QM Property Calculation (Characterization and Fingerprinting)
The set of conformers, as filtered by the above process, are ultimately sent for the final calculation of QM properties, termed “characterization.” A 3D bitstring fingerprint for each conformer is also determined, using the e3fp method. The complete list of properties that are calculated for each conformation is provided in the following table.
Note that output is provided in two formats. Most of the calculated properties are provided in a CSV format table. Coordinates are provided in SDF files.
4.4 Fingerprinting Options
In this section, you will select the options that control what descriptors are calculated, the computational approach. In addition, if you have selected “Expert” mode in your user-options panel, you can also designate if multiple conformers will be generated for each input molecule, and the filtering options that will be applied to the generated conformers.

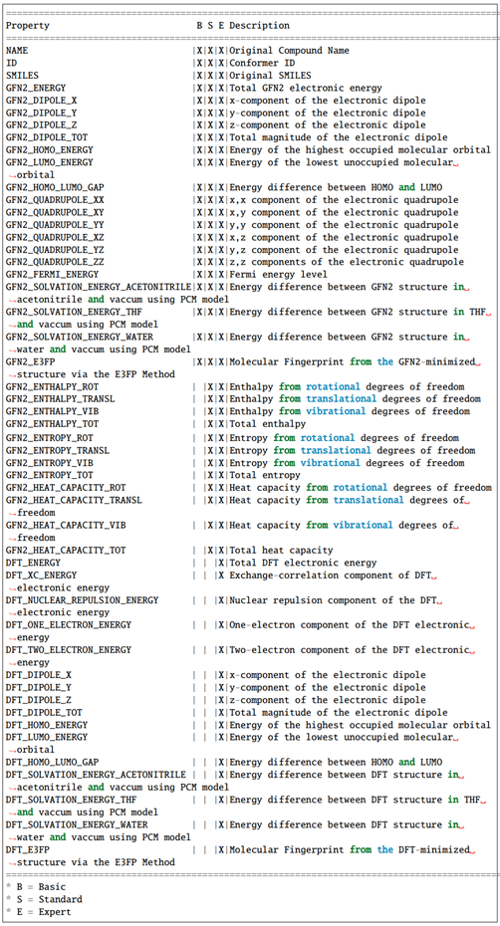

Broadly, in terms of the computational method used, fingerprints and properties can be calculated using either the relatively fast and inexpensive semiempirical approach, or using the somewhat more precise but slower and more computationally expensive DFT method. The selection of which approach to use will often depend on how many molecules you wish to characterize and how quickly you wish to get back the results. If you have a lot of molecules (many hundreds or more) and/or you need the results as quickly as possible, you may wish to use the semi-empirical method. If, on the other hand, you either aren’t characterizing a large number of molecules or you want the best possible predictions and can wait for those to finish, DFT is often the better choice. DFT calculations typically take several orders of magnitude more compute and provide several orders less throughput, and, as a result, if you wish to characterize a very large number of molecules, you will typically avoid DFT.

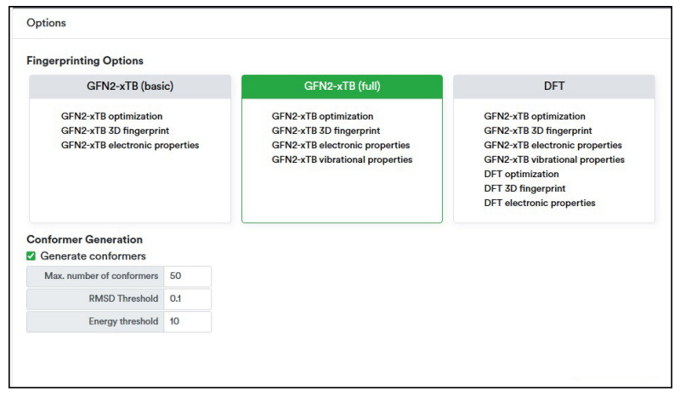

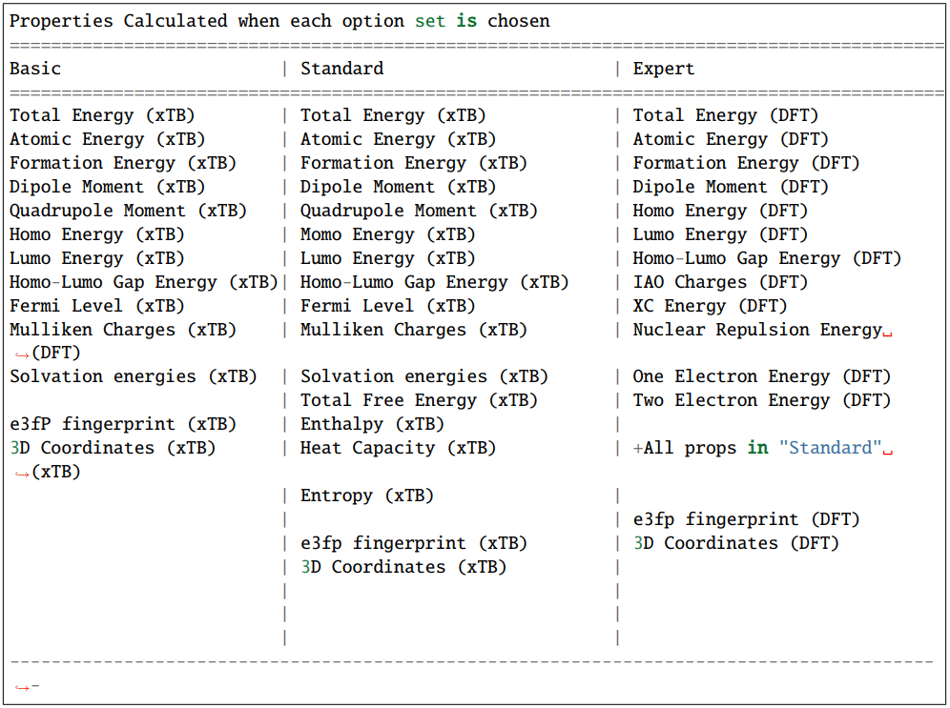

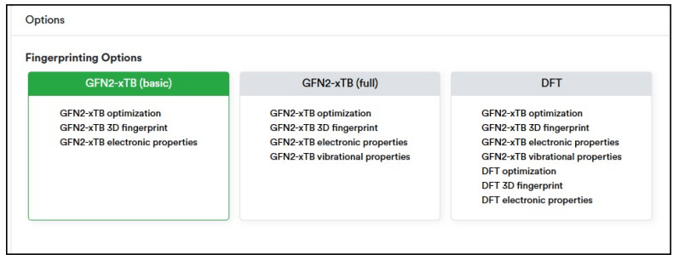

There are three options for fingerprinting/property calculation. You can select only one, and you choose it by clicking on the box corresponding to your choice. A full list of the properties calculated with each option is shown above in the section “QM Property Calculation (Fingerprinting)”. Here, we describe the calculation options in general terms.
- Basic: All QM properties will be determined using the GFN2-xTB semi-empirical QM approach. Because DFT is not being used, this saves computational expense and increases computational through not only at the property calculation stage, but also because the final DFT-level filtering step can be skipped. A list of properties that are calculated is given in the Workflow Details section. In Basic mode, the more costly vibrational properties (free energy, etc) are skipped.
- Standard: All QM properites will be determined using the GFN2-xTB semi-empirical QM approach. In addition to the properties calculated in Basic, properties dependent on vibrational analysis will also be calculated.
- Expert: QM properties will be determined using the DFT approach, using the default DFT appraoch, which is (wB97x-D; def2-SVP). This level of DFT theory generally provides very good results at a reasonable of cost. A list of properties that are calculated is given in the Workflow Details section. DFT filtering is applied in the conformer refinement workflow, after the xTB semi-empirical step (see the workflow above). In addition a large number of DFT properties, all the xTB properties listed for “Standard” will also be calculated and reported.
4.4.1 Fingerprinting Options: Expert Mode
If you have selected “Enable the Expert Mode” from your Account Management dialog, an additional dialog will appear in the Options Panel. Below is the options panel in Expert Mode:
The additional options in this Expert view relate to the generation and filtering of conformers for each input molecule. The default behavior for the program is to expect 3D structure files in SDF format, which are passed as-is to the platform for the calculation of 3D fingerprints and properties.
If you wish to generate conformers from the input molecules, then you have two choices for input file type, SMILES, and SDF, and in either case the platform will generate multiple conformers for each molecule, and then filter/reduce the initial conformer set for each molecule according to cutoffs that you can specify here.
- Generate Conformers:
- Toggle box unchecked (default): Input molecules are used as supplied, and passed directly to the software nodes that will generate a 3D fingerprint and the chosen descriptors. Since no conformers are being generated, in this case only SDF format input with 3D coordinates is accepted.
- Toggle box checked: For each input molecule, a set of conformers will be generated using distance geometry (DG). Either SDF or SMILES input is acceptable in this case. If this toggle is checked, additional options will be available, as described below. These options are not available if the toggle is not checked.
- Max number of conformers: The number of conformers to be generated for each input molecule. The default is 50 if the Generate Conformers toggle box is checked. Conformers are randomly generated using DG using a bounds matrix obtained from the input molecule. A larger value her results in a more thorough exploration of conformational space, but at a higher calculation cost per molecule.
- RMSD Threshold (Angstroms): The RMSD threshold is used to filter out conformers that are too similar to each other. If the heavy atom coordinates of two conformers of a molecule are more similar than RMSD Threshold, the higher energy structure is removed from the set.
- Energy Threshold (kcal/mol): The energy threshold used to filter out conformers with too high an energy. If the energy of a conformer is higher than the threshold value from the lowest energy conformer found, it is removed from the set.
4.5 Structure Input
Molecule(s) are imported into the platform in the “File Uploads:” section.
4.5.1 Allowed Input File Formats
The file formats allowed in this section will depend on whether you have modified the default Conformer Generation toggle option in the previous section. By default, conformers are not generated, and in this case, only SDF 3D structure input it allowed (and the SMILES radio button option will not appear). If you have clicked the Conformer Generation toggle, then you have a choice of either SMILES or SDF input (chosen via radio buttons above the file specification box). SMILES input is provided as one molecule per line. SDF input files can contain multiple concatenated molecules in a single file.
4.5.2 Uploading The Molecules File

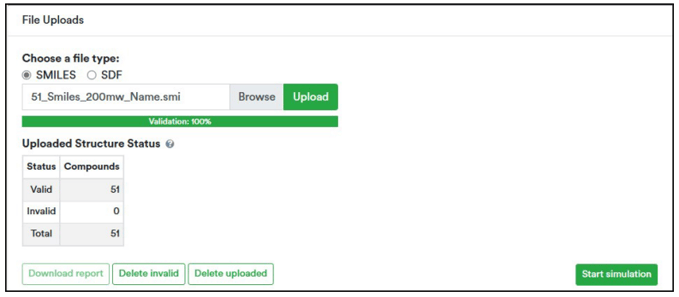

Clicking on “Browse” opens the file browser on the host computer. Once a file is selected, you click on the Upload button to parse the file. If the number of uploaded molecules is <= 50, then an interactive table will be presented, as shown below. If more than 50 molecules are input, then the table is not shown, to reduce memory overhead on the browser. In the latter case, you can still download the import report using the Download Report button.

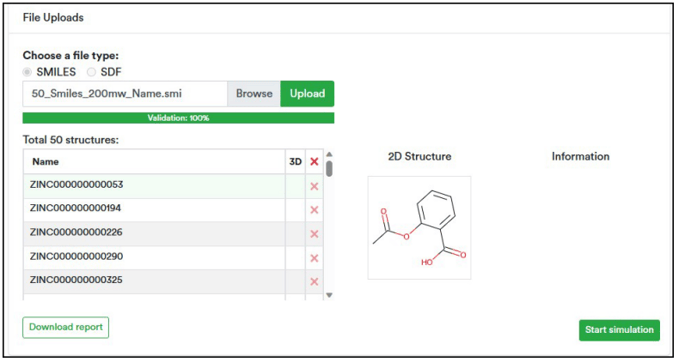

User view if number of SMILES <= 50:
User view if number of SMILES > 50:
You can upload molecules from multiple files, if desired, by executing the browse/upload process repeatedly.
4.5.3 Supported SMILES Format
SMILES format is one SMILES string per line, with a user-supplied name for the SMILES string optionally provided:
SMILES_STRING NAME
The SMILES string must not contain space characters. A string of one or more space characters separates the SMILES string from the (optional) NAME. NAME is an alphanumeric string that will be used in the status and output parts of the panel. NAME is optional, and if not supplied, a name will automatically be assigned by the platform, using the format LNNNNN, where NNNNN is a numerical index that is applied for all input ligands without names, starting from L00001.

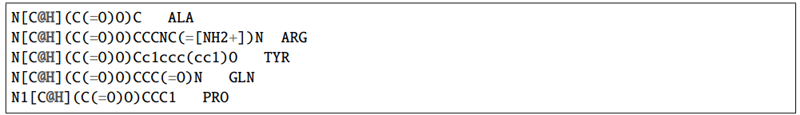

For example, the input for a list of 5 amino acids would be:
which corresponds to the amino acids: ALA, ARG, TYR, GLN, PRO.
If you specified the SMILES without the optional names after the SMILES strings, then these five molecules would be internally assigned the names L00001, L00002, L00003, L00004, and L00005.
4.5.4 Supported SDF Format
SDF files can include a concatenation of multiple SDF definitions. Standard SDF format files are expected. If the SDF input is being used without conformer generation, then it is required that the SDF file contains 3D coordinates for each molecule.
4.5.5 Treatment of undefined stereoisomers
If the chirality of stereocenters in a molecule is specified in the input SMILES string, that chirality will be enforced. If stereocenters exist in the molecule and the chirality is not specified in the SMILES string, structures will be generated that reflect both chiralities at the unspecified center.
An SDF format file, if supplied, must contain a full coordinate definition of the input molecule, and so stereoisomer ambiguities are not allowed.
4.5.6 Parsing/validation check (<= 50 molecules)
The specified file with the SMILES definitions will be checked for validity once you click on the “Upload” button. If the number of input SMILES is <= 50 (interactive mode), you will also have the possibility, if desired, to remove any SMILES that was successfully imported by clicking on the red cross next to the SMILES name. Clicking on any row of the table corresponding to a successfully imported structure will present the 2D representation of the structure to the right of the table:

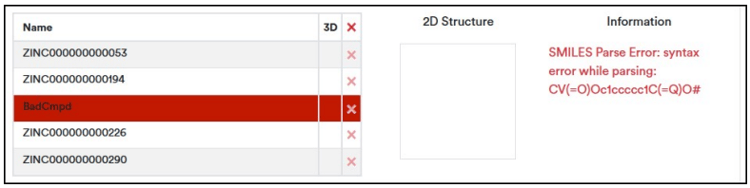

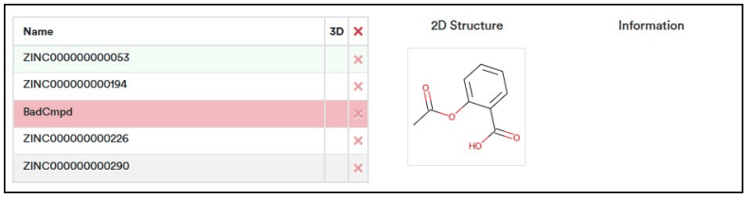

For the example here, an invalid SMILES was intentionally included in the input file to demonstrate the program behavior when that is identified. The compound (named “BadCmpd” in the input file) appears as a red-shaded line. If you click on that compound, information on the error will appear in the Information field.
Note: The SMILES processing assumes closed shell calculations, therefore the multiplicity is always set to 1.
4.5.7 Parsing/validation check (> 50 molecules)
In the case of an upload of more than 50 molecules, instead of an interactive table, only a summary of the molecules uploaded will appear. This table indicates the numbers of Valid and Invalid molecules uploaded, plus the Total of the two values. You can use the Download Report button (below) to examine why any molecules were deemed Invalid. You can also use buttons below the table to either delete the invalid uploaded molecules, or else to delete the entire set of uploaded molecules.
4.5.8 Download Report
The Download Report button will download the information in the structures table, in .csv format. The columns in the table are NAME, SMILES, STATUS, and MESSAGE. MESSAGE is blank unless the STATUS indicates a problem processing the SMILES string.
4.5.9 Delete Invalid
This button only appears when the number of molecules imported is > 50. In this case, the Delete Invalid button can be used to delete any molecules flagged as Invalid from the set. Note that if you don’t delete this molecule from the set, you can still submit/run the calculation–the molecules flagged as “Invalid” will simply be skipped.
4.5.10 Delete Uploaded
This button only appears when the number of molecules imported is > 50. In this case, the Delete Uploaded button can be used to delete all uploaded molecules.
4.6 Starting the Calculation
Once you have uploaded your data, chosen the fingerprinting level, and specified any other options of interest, you can start the calculation by pressing the Start Simulation button, which appears below the Fingerprinting Options selector.
4.7 Simulation Status

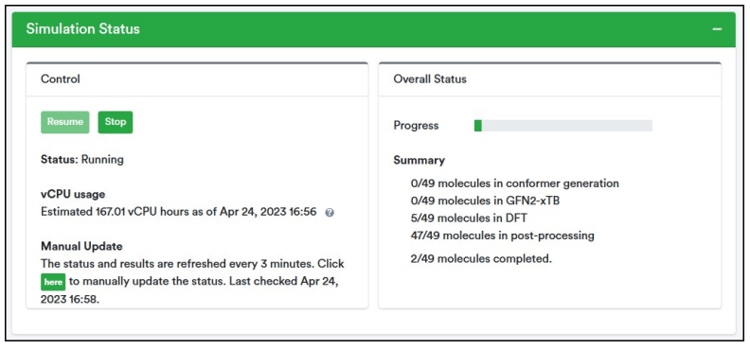

After the calculation has been started, you can monitor the status in the section of the panel that appears below the Options section. In addition to information about how much computer time has been used (vCPU usage), you can also Stop and Resume a calculation that is in progress, if necessary. Stop will terminate the calculation but keep the intermediate files so that you can subsequently resume the calculation if desired.
The Simulation Status will update regularly at 3-minute intervals. If you wish to update more frequently, you can click on the indicated button beneath the Manual Update section.
Beneath the progress bar on the right, you will find a summary list of how many compounds are in each part of the calculation workflow. This provides a more detailed view of the calculation progress.
4.8 Results

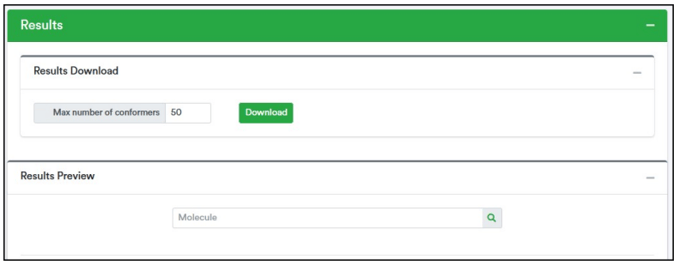

Once the calculation has been completed, the buttons in the Results section will become active. In this section you can download the results of the calculation. You can also examine the results for any particular ligand by using the search bar.
For a download, you have the option of specifying the maximum number of conformers to be reported for any input molecule. Because of the filtering process performed in the workflow, the number of conformers for each molecule will vary, and may be smaller than the number specified. If the number of conformers post-filtering is larger than the maximum value specified (NMAX), the NMAX lowest energy conformers will be reported. If NMAX=1, then only the single lowest energy conformer for each molecule will be reported.
4.8.1 Results Downloaded ZIP file
The Download button is only active when the Calculation has the status of “Complete”. When you press the “Download” button, a system-dependent dialog will ask where to a “.zip” formatted file. This .zip file contains the CSV formatted spreadsheet of calculated properties (see below), as well as a directory tree of SDF structure files corresponding to all the conformers reported in the table. The format of the directory tree is

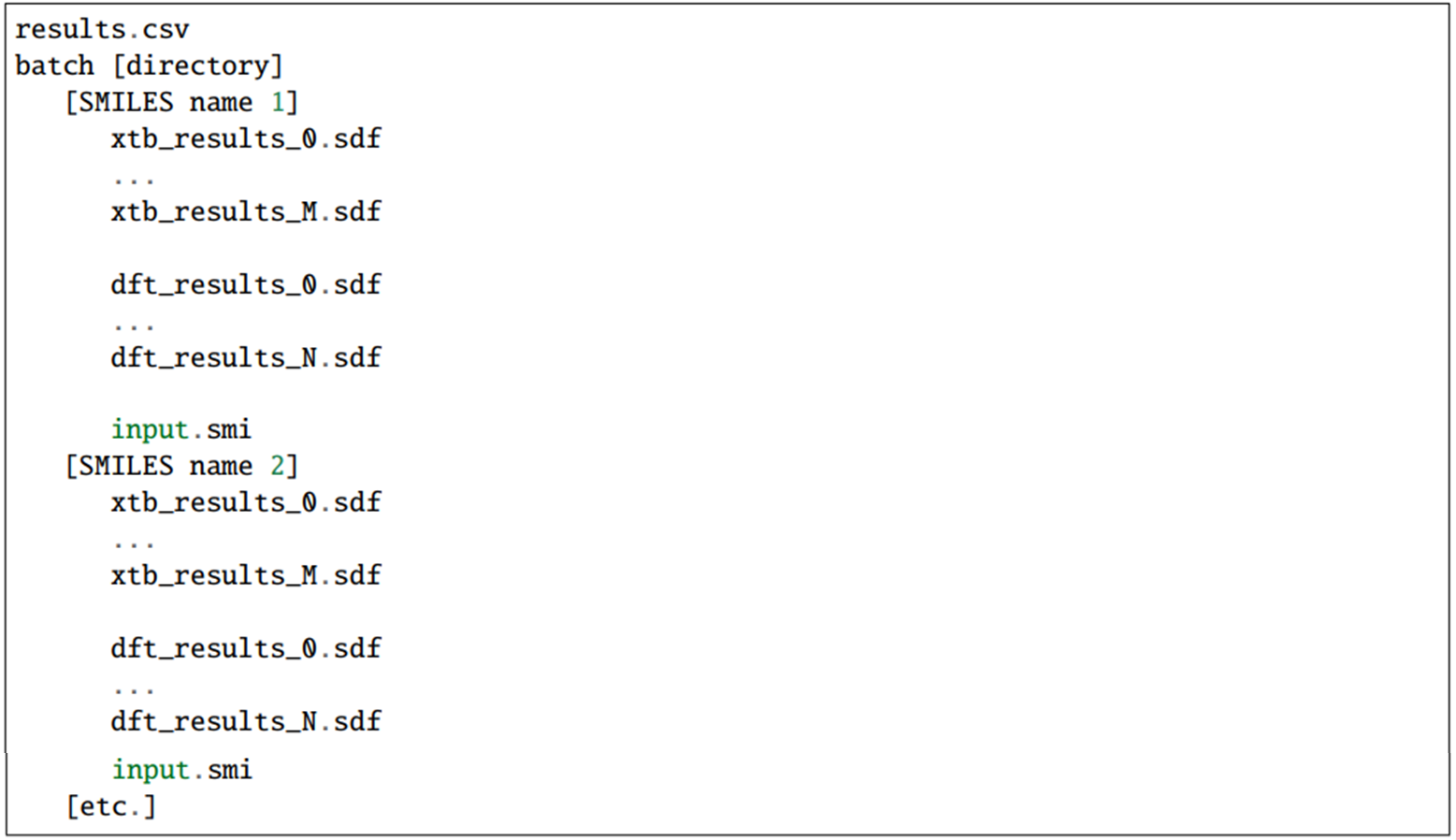

A sub-directory for each input molecule is included in the .zip file. The list of xtb_results structures are the M conformers that survived the workflow filtering (up to a maximum of NMAX, as specified by the user). The dft_results files are included only if DFT calculations were performed (Expert), and in this case, the N conformers that survived the workflow filtering (up to a maximum of NMAX, as specified by the user) are provided. input.smi contains the input SMILES string for this molecule.
4.8.2 Results Spreadsheet

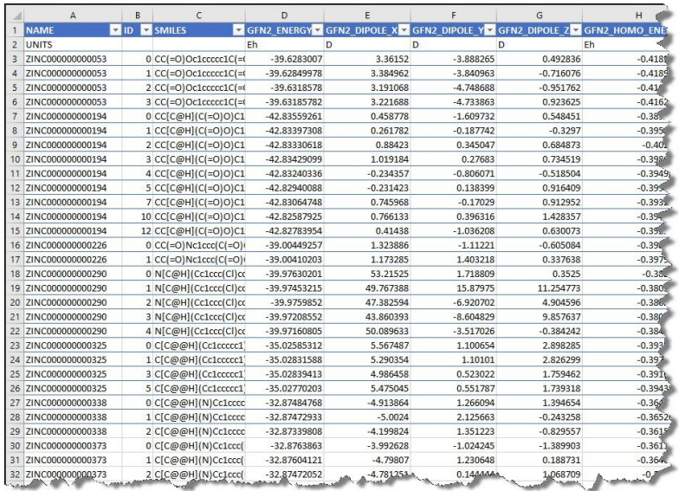

The results.csv file included in the downloaded .zip file contains the calculated QM values for each molecular conformed. This standard-format “.csv” file can be read by Microsoft Excel, Google Sheets, or LibreOffice (or any other programs that handle this format). A portion of the spreadsheet, viewed in Microsoft Excel, is shown below. There is one line (entry) for every conformed of every input molecule, so there will often be multiple lines with the same SMILES and name (SMILES_tag). The second column is “ID”, which gives the conformer number for the parent SMILES, starting from 0. Note that the number of conformers may differ for each SMILES, but will not exceed the value of NMAX specified when requesting the download. If NMAX is specified as “1” (only download the lowest energy conformer), then the ID of each molecule would be “0”.
4.8.3 Results Search

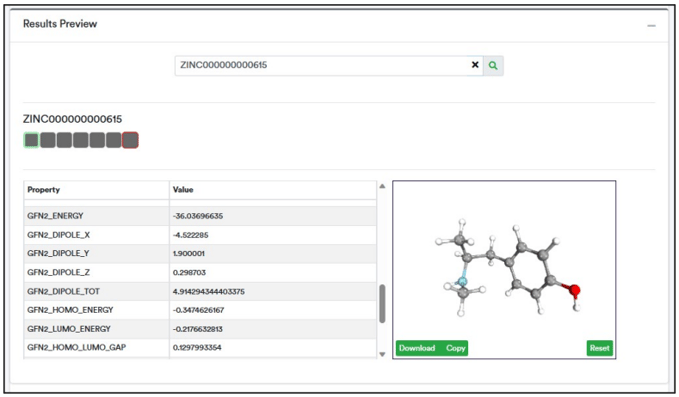

If you enter the name of an input molecule into the search bar and click on the search button, details for that molecule will populate the bottom of the panel (if you enter a name that does not correspond to any output, then the Results Preview area will remain blank). Below the name of the molecule, you will find a series of dark grey boxes. Each of these corresponds to one of the conformers generated for that molecule that passed all the filtering tests in the workflow. (Conformers that were removed at some filtering stage are not included here). The conformers are listed in order of descending energy, with the lower energy to the right. The conformer with the lowest energy is always the last in the list, and has a thin red border around it. Ordering is based on DFT energy (if DFT calculations were performed), or
else the GFN-xTB energy.
One box will have a thick green border around it. This is the selected conformer. You can click on any box to change the selection. The table and 3D view of the conformer below reflect the chosen conformer. The scrollable table will contain the calculated results for the chosen conformer. (The same information appears in the downloaded .csv file).
The molecule view in the 3D viewer can be adjusted using either left-click or right-click to rotate and the scroll wheel to resize.
A sample conformer view is shown below:
Below the 3D viewer, buttons appear to allow you to either Download the coordinates of the shown molecule (in .xyz format) or else to copy them to the clipboard associated with your browser. You will also find a Reset button that resets the view in the visualizer.
The Molecular Fingerprints Command Line Interface (CLI)
6.1 The CLI vs the GUI
The Molecular Fingerprints Command Line Interface (CLI) is an alternative way to access the functionality of this platform. It provides the same functionality as the GUI version that is described in previous chapters, and it is not required that you either install or use the CLI. Whether you use GUI or CLI access is entirely a matter of preference. Note that the CLI requires you to install local software in a Python environment, and so it is limited to platforms where you have ready Linux access, and where you can install some requisite software.
In contrast, the GUI is accessed through a standard browser and requires no software installation. Therefore, GUI access is available on a much larger array of devices (computers, tablets, phones, etc.).
Note that both CLI and GUI-initiated calculations are stored on the backend in the same databases. That means you can access calculations that were initially run from the CLI through the GUI, and vice-versa.
6.2 Installation Note

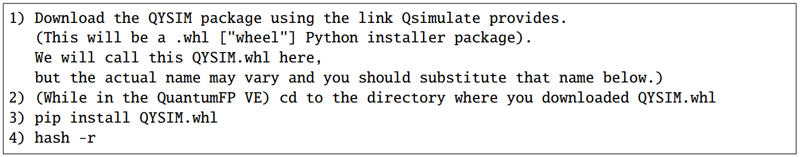

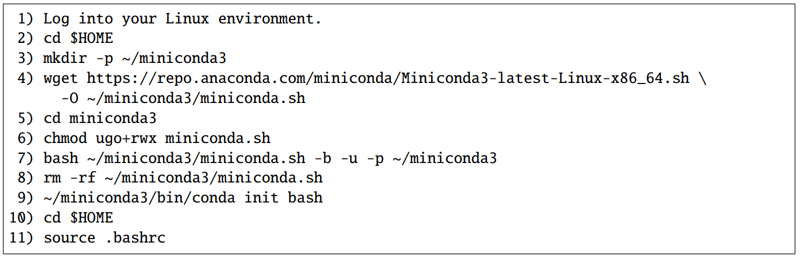

Note that before you can run the CLI, you need to have installed the CLI on your computer, following the instructions provided in the chapter The Molecular Fingerprints Command Line Interface (CLI): Installation. Installation only needs to be performed once (unless you need to update the software). If you want to use the CLI, you must install the software first, using the step-by-step instructions in that chapter.
Assuming you have followed the instructions in the installation chapter and installed the QuantumFP CLI into a virtual environment under Miniconda, each time you log into the computer and want to access the CLI, you will need to activate the appropriate virtual environment. This is done using the following command:
6.3 Overview
The previous chapters have described the functionality of the Molecular Fingerprints platform, and how to access the platform through the browser-based GUI. As noted, an identical set of functionality is accessible through the CLI.
The CLI runs in the Linux environment. To run the CLI, some infrastructure must be installed using a small number of simple commands, as described in the Installation section (next chapter). Once the CLI is installed, the user can invoke it using the sbb command. The available sbb commands and syntax are described in the sections below.
For details on the implementation of the QuantumFP process, the user is referred to in previous chapters.
In the sections that follow, the following should be noted:
- Enclosing arguments with double quotes is required for arguments with space or other special characters, e.g. a batch name with embedded spaces.
- Optional flags are enclosed in square braces.
- Flags that require arguments are followed by a value in angle braces.

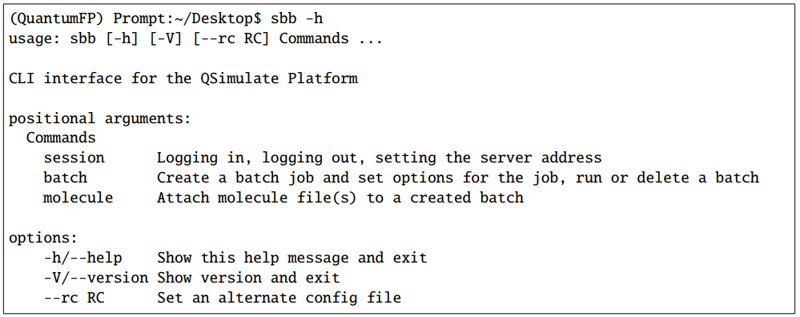

6.4 Running the QSimulate CLI

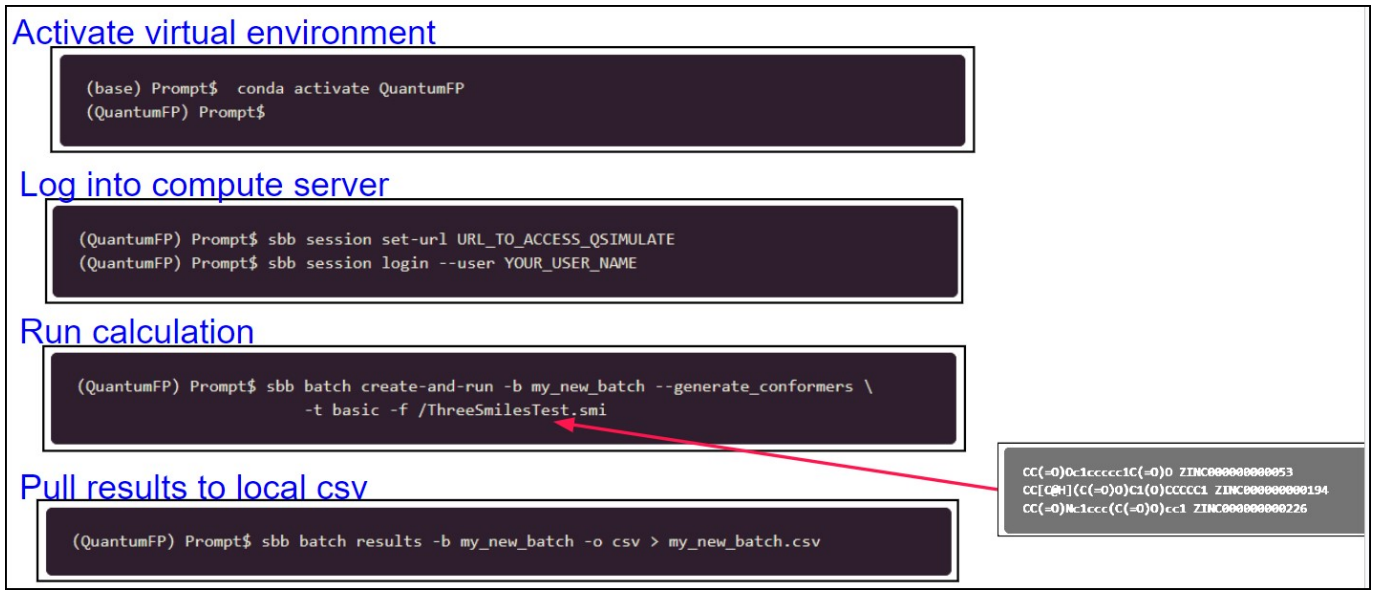

Once you have installed the CLI package, following the instructions in the Installation chapter, and you have activated the appropriate virtual environment, using the command above, you will be able to run calculations from the command line. The software is invoked using the “sbb” command, followed by options and keywords that describe exactly what you want to do. For example, sbb -h will return a top-level help menu:
6.5 Session Command
6.5.1 Session Set-URL
Logging into the CLI requires that you first specify the name of the server you will be using for your calculations, and then actually log into that server.
To specify the URL of the server (a URL you will have been provided by QSimulate or your system administrator) use the following command. This command only needs to be performed once during a session, even if you log out and back in again during that session.
6.5.2 Session Login and Logout
To log into the server, you use the command
USERNAME and PASSWORD are replaced by the credentials you set up for the QSimulate platform. If you do not wish to write your password in plaintext in the command line, you can omit the “-p PASSWORD” part of the command, in which case the server will prompt you to enter your password.
If your login was successful, you will see the message
To subsequently logout of the server, use the command
Note that you will be auto-logged off the server after 15 minutes of inactivity. If you attempt to issue a sbb command that requires a response from the server after you have been logged out, you’ll be shown the message
6.5.3 Session Update-Certificate
It is unlikely you’ll ever need to manually update the SSL certificate. But if you do, the certificate can be updated using the command
6.6 Batch Command
Within the QSimulate platform, the calculations you want to run are termed “batches”. Each calculation run is a “batch”. The batch command can be used to list and/or examine batch calculations you have already submitted or to create and submit a new batch calculation. The main level options for the batch command are:

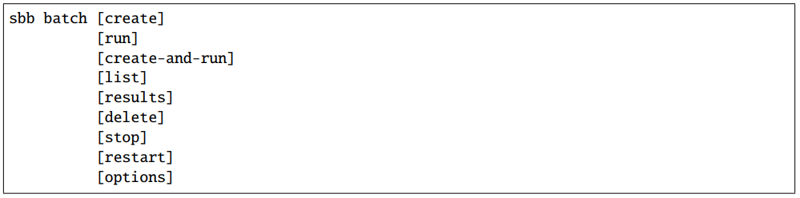

The standard workflow for setting up a calculation requires three commands:
The first sets the options for the calculation. The second attaches molecular-input files. The third submits the calculation for execution. There is also a sbb batch create-and-run command that combines all actions into one command.
6.6.1 Important considerations for scripted execution
If you plan to run the CLI commands from a script or pipe, it is crucial to understand that while the molecule create command will return the user immediately to the command line, the actual upload and attachment of the molecules file can take some time. During this time, the status of the job will be “busy”. If you attempt to run a job while it is in “busy” status, you will get an error message indicating you must wait for the job to proceed to “staged” status. While you can just wait for the molecule upload to complete and reissue the run command, this is often inconvenient in a scripted implementation. To circumvent this issue, the user has two options:

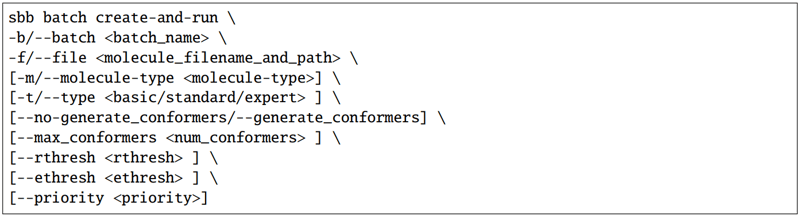

- Use the batch-create-and-run command (see below) in place of the separate batch create/molecule create/batch run commands. This is the recommended alternative and retains all the options available to the user with the three separate commands.
- Insert script code in your submission workflow between molecule create and batch run to poll the batch status (via a batch list command), to ensure that it has exited the “bush” status and is instead in the “staged” status.
The various commands are detailed in the sections below
6.6.2 Batch Create

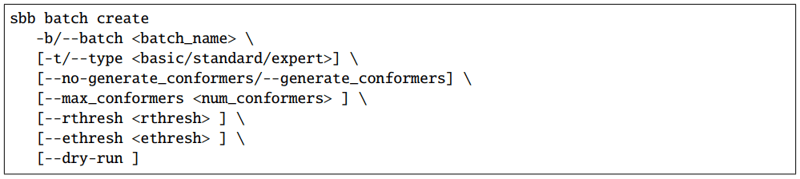

Calculation options for a batch are configured when this command is called. A set of calculation options is specified with the -t switch, and additional advanced options can be specified with further command-line switches. To fully set up a calculation, a “batch create” command needs to be followed by a “molecule create” command (below), and a subsequent “batch run” command will run the calculation.
sbb batch create options detail:
Required. Defines the name of a new batch name to be created.
Specifies the set of descriptors and fingerprints to be generated. There are three options, corresponding to the three option buttons in the GUI version: Basic, Standard, and Expert. (Additional details of what, specifically, is included in each set is described in separate chapters).
- -t basic: Basic fingerprinting options, GFN2-xTB optimization, GFN2-xTB 3D fingerprint, GFN2-xTB electronic properties
- -t standard: Standard fingerprinting options: GFN2-xTB optimization, GFN2-xTB 3D fingerprint, GFN2-xTB electronic properties, GFN2-xTB vibrational properties.
- -t expert: Standard fingerprinting options: GFN2-xTB optimization, GFN2-xTB 3D fingerprint, GFN2-xTB electronic properties, GFN2-xTB vibrational properties, DFT optimization, DFT 3D fingerprint, DFT electronic properties.
The remaining properties are termed “Expert” properties in the GUI interface, and are only shown in “Expert Mode”. They can be set here using the following options.
Controls whether conformations will be generated. The default is “no_generate_conformers”. This default expects the input molecule data in SDF format, with the 3D conformation of each molecule pre-determined. No conformational exploration will be performed, and descriptors and fingerprints will only be calculated for the input conformations. This option is not compatible with 2D SMILES input.
If you want conformers to be generated for each input molecule (optional for sdf format input, and required for SMILES input format) you need to specify the generate_conformers flag. A total of NUM_CONFORMERS are initially generated for each input molecule.
Default is num_conformers = 50. Specifies the maximum number of initial conformations to be generated for each molecule in the input list. Ignored if no_generate_conformers has been specified.
Default is rthresh = 0.1 (Angstrom). Defines the RMSD threshold for discarding conformationally redundant conformers during the filtering process. For conformer pairs where the RMSD is less than rthresh, the higher energy conformed will be discarded. Ignored if no_generate_conformers has been specified.
Default is ethresh = 10.0 (kcal/mol). Defines the energy threshold for discarding high energy conformers during the filtering process. Any conformer that is more than ethresh higher in energy than the lowest energy conformer identified will be discarded. Ignored if no_generate_conformers has been specified.
If the dry-run argument is specified, the calculation options will be written to standard out in JSON format and no batch the calculation will be created.
6.6.3 Batch Run
This command will submit (run) a batch job that was previously created and has the status of “staged”. Note that before you can run a job, you must associate a molecule's input file to that job using the Molecule Create command (see below). If you attempt to run a batch for which you have not defined input molecules, you will get an error message indicating “no valid inputs are present.”
If you attempt to issue the batch run command before the molecule upload is complete (i.e. a moleclule create command that is not finished executing), you will receive an error message indicating the batch status is “busy” and must be “staged” before it can be run. In this case, you must wait for the molecule upload to finish before issuing the batch run command. For unattended script-based submission, it is strongly recommended that instead of issuing the batch create/molecule create/batch run commands separately, you use the batch create-and-run command, which circumvents this type of issue.
Default is 75. The queueing priority of the jobs, relative to other jobs the same user/company has submitted. The priority can be used to ensure a particular job gets sent for execution before others in the user’s queue. It has no effect at all on performance/turnaround once the job exits the queue and starts executing. The default priority for CLI jobs is 75, while the default CLI for GUI-submitted jobs is 50. Lower values mean higher priority. If you want CLI jobs to execute before GUI-submitted jobs, assign priorities < 50. The minimum allowable value is 10.
6.6.4 Batch Create-And-Run
This command is entirely analogous to a combination of “batch create”, “molecule create”, and “batch run”, but in this case, the batch job is both set up and run in a single command. It eliminates the need to issue multiple commands. The individual options are as described under Batch Create and Molecule Create.
It is strongly recommended that you use the batch create-and-run command if you will be running jobs from a script, since it will automatically wait for the molecule upload to finish before issuing the run command.
6.6.5 Batch List
Returns a list of all batch calculations that have been created and/or run. All batch calculations run from the account will be shown, including calculations (if any) performed using the GUI interface.

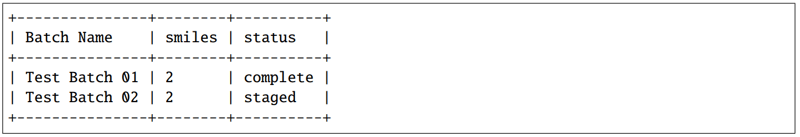

The optional output-style specifier will designate the format of the list. The default is “table”. An example output table would be:
The same output in csv format (sbb batch list -o csv) would be:
html format is intended for use in Jupyter notebooks.
Potential status values include: staged, running, complete, stopped, failed, and busy.
- Staged: Job has been created but not submitted to run. Or a previously stopped job in the process of resuming.
- Running: Job is currently in process on the servers
- Complete: Job has completed successfully
- Stopped: Job was paused using the batch stop command
- Failed: Job failed to complete successfully
- Busy: A staged job for which a molecule upload is in progress.
6.6.6 Batch Results
This command will return the results for the completed batch calculation with the name batch_name. If batch_name includes embedded spaces, you must enclose the full name with double quotes. The result is streamed to standard out, and you will typically be redirected to a file. For example:
The -o/-output-style format operates exactly as described above for Batch List.
6.6.7 Batch Delete
This command will delete the named batch. Note that the delete will be performed immediately and there is no subsequent user verification, so be careful when using this command.
6.6.8 Batch Stop
This command will stop the named batch. The state of the calculation and all intermediate results are retained when the calculation is stopped, and it can subsequently be restarted using the batch restart command (below). This command can only be successfully be executed for a job whose current status is “Running”.
6.6.9 Batch Restart
This command will restart a previously stopped batch. This command can only be successfully be executed for a job whose current status is “Stopped”.
6.6.10 Batch Options
This command will report the options used for the named batch in JSON format. The report is sent to standard output.

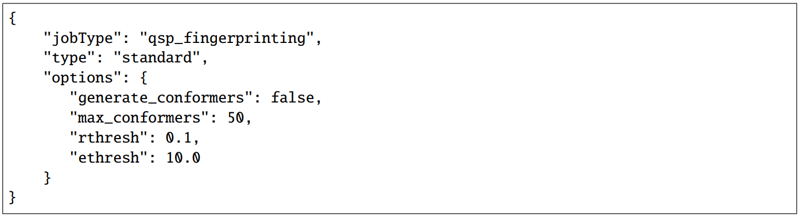

For example, a batch job run with all default options would return this JSON report:
6.7 Molecule Command
6.7.1 Molecule Create
This command is used to attach molecule input files to a Batch calculation you are setting up. You must create the batch calculation (Batch Create) first, before you can attach molecule files to it. And you must attach molecule input files to a batch calculation before you can send it for execution (Run, below).
You can attach more than one molecular input file to the same batch, by repeatedly issuing the molecule create command with additional files.
The name of an existing batch you have created. (To check what batch calculations you have created but not yet submitted, use the command “sbb batch list” and focus on those with “Staged” status. If the batch_name has embedded spaces, you must surround it with double quotes.
The name and path for the input molecular file.
The type of molecular-input being supplied. Available options are sdf/smi/json. By default, the type is inferred from the filename extension (.sdf or .smi). If the user has specified –no_generate_conformers for this batch, then only SDF input is allowed, and an attempt to specify SMILES input will result in an error.
When a list of molecules is uploaded, it is parsed for errors, and molecules that fail that parsing will annotated with the problem detected. (Error status can be viewed using Batch List, below). When run from the command line, molecules that flag an error are automatically skipped when the job is submitted to run.
6.7.2 Molecule List

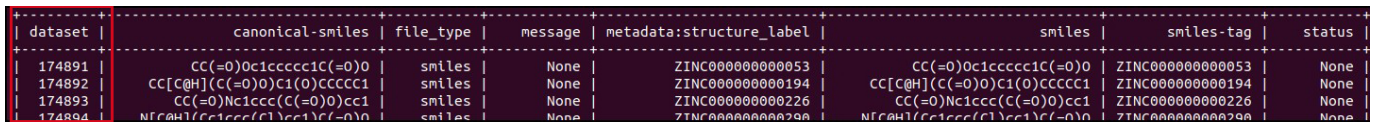

Lists the molecules that have been uploaded to an existing batch with name batch_name. If there were errors detected for some of the uploaded molecules, these will annotated with the error status.
6.7.3 Molecule Delete
Allows the user to delete specific molecules associated with the specified batch_name. The dataset_id for each molecule is in the first column in the table generated using the molecule list:
You can specify multiple molecule dataset_id values separated by white spaces. For example:
6.8 Specifying the Config File (RC)
By default, a configuration file is automatically generated for the user during the installation process, and is found in the home directory: $HOME/.sbb_cli_rc
There is generally no reason for the user to examine or change this file and the default is sufficient. In rare cases, you may wish to use a non-default RC file (although typically only if instructed to do so by your sysadmin or QSimulate). In this case, any sbb command you issue can be post-pended by the option
Which allows the user to specify an alternate RC file.
6.9 Example of running a calculation using the CLI
In this example, we are going to assume you’ve set up the virtual environment, as described in the installation chapter, and called it QuantumFP. We’ll also assume you have followed the suggestion in that chapter and created an alias called “quantumfp_cli” in your .bashrc file to activate the virtual environment. See the installation chapter for more details.
First, log into your Linux account. When you log in, your .bashrc file should automatically get parsed, setting up your virtual environment alias.
Now, activate the virtual environment where you have installed the CLI:
When you activate the virtual environment, the name of the environment will appear between parentheses at the beginning of your prompt. Once activated, the virtual environment stays activated for the remainder of your login session (or until you deactivate the session). The string shown for “Prompt” will depend on your account name and how your Linux machine was set up.
Let’s create a SMILES format input file that can be used with the CLI. (If you have your own SMILES or SDF input file already, you can use that).
Use your favorite file editor (emacs/vi/vim/etc) to create a file named “ThreeSmilesTest.smi” and insert the following three lines.
Save this file. You’ll now have a file named ThreeSmilesTest.smi that has three small molecules taken from the ZINC screening database.
Log into your QSimulate CLI account.
Replace URL_TO_ACCESS_QSIMULATE with the URL provided by your system administrator or QSimulate. Replace YOUR_USER_NAME with the login name (or email) you use with the QSimualte account. You’ll be prompted to provide your password. If you are successful, you will see “Login successful.” on your screen.
Note that a login expires after 15 minutes of inactivity, and you’ll need to login again if that happens (using the same command).

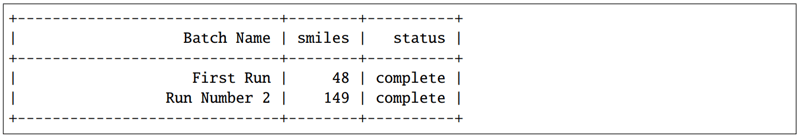

At this point, you’ll want to create a new Batch calculation. You should first look at the names of any Batch calculations you have already run from this account, because you’ll need to assign a name, and it has to be unique. To look at the list of calculations you have already run, issue the command:

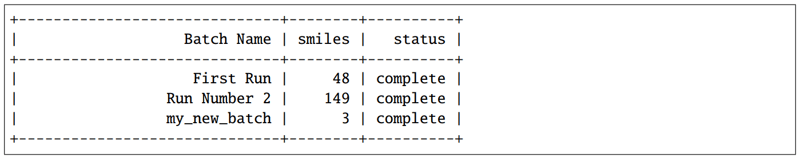

This will show a table of all Batch calculations you have created, for example:
This table will include all Batch calculations you have created, whether from the CLI or the GUI. When creating a new Batch calculation, you need to choose a name not already in the table. (The CLI will let you know if you try to make a new Batch with the same name).
To create a new batch calculation use the command:
This command will create a new Batch calculation that you can work on, named “my_new_batch”. It indicates that conformers will be generated for each input molecule (required when using SMILES input), and it indicates that we will be calculating the “basic” set of descriptors. All other values are left at their defaults.
Next, we need to attach to this Batch calculation the list of molecules we want to use for input. To do this, we use the following command:
This command attaches the file ThreeSmilesTest.smi, which you created earlier, to the batch calculation my_new_batch. The command, as written, assumes the ThreeSmilesTest.smi file is in the directory you’re working from. If it isn’t, just add the correct path before the name of the file in the command.
Finally, we need to run the Batch calculation we’ve just set up:
This will submit the Batch job to the CLI servers for execution.
Note that the CLI also offers the ability to combine the above three commands (batch create/molecule create/batch run) into a single command, create-and-run. This is often more convenient to use and offers all the run options available when issuing the commands separately. You could replace the above three commands with this single command:
When issuing commands from the command line, whether you issue the three commands separately, or use the create-and-run command from the command line is a matter of preference. But it is important to note that if you plan on running these commands from a script or unattended pipeline, it is strongly recommended you use only the create-and-run command. The reason for this is that there can be a lag in the molecule attachment step (depending on the size of the input molecules file), and if you attempt to issue the separate run command before the attachment is complete, the job will not submit. The create-and-run command will ensure that the actual run command waits for the molecule attachment to complete.
Using the “sbb batch list” command, you can track the progress of the job until it is completed. Eventually, you’ll see the table for the batch list look something like:
Once your job is complete, you can download the results. The following command will download a results table in CSV format:
The results table will be in the file my_new_batch.csv. You can view this file using a text editor, or import it into a spreadsheet program like Excel.
For clarity, a summary of a simple CLI workflow is shown in the figure below.
The Molecular Fingerprints Command Line Interface (CLI): Installation
7.1 Installation Overview
Before you can run the QSimulate QuantumFP CLI, you need to install some infrastructure. This chapter describes the installation process. This is a straightforward process, only needs to be done once, and does not generally require administrative privileges.
The CLI will run from your local Linux host. Any standard modern Linux host can be used, including both dedicated Linux machines, as well as the “Linux Subsystem” that is supported in modern versions of Windows (versions 10 and 11). The CLI can also be installed and run from the Unix shell available as part of MacOS.
Installation requires that you download the “qysim” program package from QSimulate. You will download the package in whl (“wheel”) format, which can be installed using Python/Pip with a single command.
Before you install the qysim package, you will need to ensure you have the proper software infrastructure installed on your Linux installation. This is best carried out in a virtual environment, which serves multiple purposes:
- This will allow you to install the necessary software without the need for “Adminstrator” privileges
- This will ensure that the correct version of Python required to run the software is installed
- This will isolate all the Python-installed software in a virtual container that cannot affect other software already installed on your computer
The implementation description that follows is for a Bash shell environment, which is the default shell for most Linux and Unix distributions. If you happen to use a different shell (e.g. tcsh, csh, etc.) you may need to modify the syntax of some of these commands, but the actual steps won’t change.
The process of installation is described in four parts:
- Installation of miniconda3 (only performed one time; not necessary if already installed on your machine)
- Creation of the QSimulate QuantumFP virtual environment
- Installation of other software in the virtual environment that is required to run our software
- Installation of the QSimulate software
7.2 Installing the Virtual Environment (Miniconda)
If miniconda is already installed on your system, skip this section.
We are going to set up the CLI access within the Miniconda environment management system. There are alternatives to Miniconda (e.g. Venv and PyDev), but Miniconda has advantages, particularly with respect to ensuring you don’t windup with mixed (and conflicting) versions o f Python on your system. Miniconda is an efficient reduced-size-and-scope version of the venerable Anaconda environment manager, and has all the features we need. You only need to install Miniconda once. If you have already installed Miniconda on your system, you won’t need to install it again now.
If you are an advanced user and prefer a different approach to the virtual environment, that’s fine–but you’ll need to modify the commands described below to reflect the approach you use, and you’ll be responsible for ensuring an appropriate version of Python (3.8 or higher) is installed and that it doesn’t conflict with other installed software. Unless you are an advanced user, we strongly recommend you use miniconda as described.
To install Miniconda3 run the following commands. This will create a subdirectory named miniconda3 in your home directory that will contain both the miniconda program, and, subsequently, any Python packages you install while in the virtual environment.
These installation instructions assume you are using the Bash shell.
Upon sourcing your .bashrc, you will find that your default Prompt: is replaced by “(base) Prompt:”, which reflects the fact that Miniconda is now installed and working on your machine. (base) Prompt: means that while Miniconda is running, you have not yet entered any named virtual environment. You can install software in the (base) environment, but it is generally considered bad practice and not recommended.
7.3 Creating the QSimulate QuantumFP virtual environment
Now that we have installed Miniconda, we can create virtual environments within Miniconda. Each virtual environment (VE) is an independent branch of your installed operating system. You can activate (enter) and deactivate (exit) a VE at any time. When you activate the VE, you can access all the Python packages you installed in that VE, but you won’t Python packages you may have installed in different VEs. As a result, Python-related software you install in a VE can’t pollute your system or break dependencies that are assumed for other packages installed on your computer outside the the VE. And if you make a mistake or don’t want to use a VE anymore, you can easily delete that VE–and all the Python packages installed to that VE–without affecting anything else on your computer.
For QuantumFP, we’ll create a VE named QuantumFP. In this VE, we’ll install a suitable version of Python and additional tools (Pip, Git, etc.) that are required for QuantumFP to install and run.
With these commands, we are creating a VE named QuantumFP. But you could use a different name, if desired. The conda create command creates the VE with a specific version of Python (3.8) that is suitable for our purposes. The conda activate command enters us into the created VE.
7.4 Installing software in the QuantumFP virtual environment required to install/run QuantumFP
Before we install the actual QuantumFP package, we need to install some software that will be used during the installation process. The following commands take care of that installation. Be sure that you issued the conda activate QuantumFP command above, so that you are installing into the appropriate VE.
7.5 Installing QuantumFP (QYSIM)
7.6 Using QuantumFP on subsequent logins
When you log out of your Linux session, all virtual environments are automatically closed. When you log in again, you will need to activate (reopen) the VE you want to use. If you followed the installation instructions above, your VE for QuantumFP is, itself, named QuantumFP. To activate the VE to use it you need to issue the command:
If everything is working properly, after issuing the above command, you should find your default prompt replaced as below
7.7 Testing QuantumFP CLI
At this point, your CLI installation under the virtual environment should be working. To test it, try the following four commands (ensuring, first, that your QuantumFP virtual environment is active):
Where YOUR_QSIMULATE_ACCESS_URL is replaced by the URL you were provided by QSimulate or your admin, and YOUR_QSIMULATE_EMAIL_LOGIN is replaced by the email address associated with your account. If your installation is properly set up, the first two commands above should log you into the platform (you should see “Login successful” after you specify your password following the login command). The batch list command should execute without an error. And the logout command will disconnect you from the session, and you should see “Logged out.” appear at your terminal.
7.8 Exiting the Virtual Environment
If you wish to exit the virtual environment, issue the command “conda deactivate”. This will drop you back to the (base) level of Miniconda.
7.9 Removing the virtual environment and QuantumFP installation
One of the great advantages of having installed QuantumFP in a virtual environment is that that makes it trivially easy to remove the installation. For example, if you wish to do a clean update installation, you can just remove the previous virtual environment, recreate the virtual environment, and then install the new version. (You can also have multiple virtual environments if you wish to install the new update without removing the previous version).
If you have installed a number of different packages in the Miniconda environment manager, and only want to delete the QuantumFP installation (while keeping everything else as-is), you merely have to exit the VE using the command “deactivate” and then remove the VE, as follows:
The last of these commands deletes a configuration file that QuantumFP will have created in your home directory.
To see a list of all virtual environments installed in Miniconda, you can use the “env list” command:
